Transformer Architecture and Types

Focusing on Encoder-Only, Decoder-Only, and Encoder-Decoder Architectures

By Swadesh Swain

Date: June 26, 2024

Introduction

Overview of Transformer Architectures:

  • Encoder-Only: Models using only the encoder stack.
  • Decoder-Only: Models using only the decoder stack.
  • Encoder-Decoder: Models using both encoder and decoder stacks.

Encoder-Only Architecture

Examples: BERT, RoBERTa, ALBERT

Structure:

  • Consists of multiple layers of the encoder.
  • Each layer includes self-attention and feed-forward networks.

Attention Mechanisms:

Self-Attention:

  • Purpose: Allows the model to weigh the importance of different words in a sequence relative to each other.
  • How it Works:
    • Each word (token) in the input sequence generates three vectors: Query (Q), Key (K), and Value (V).
    • The attention score is computed using the dot product of the Query with all Keys, followed by a softmax operation to obtain attention weights.
    • The final output is a weighted sum of the Values based on these attention weights.
  • Use Cases: Used in both encoder and decoder stacks in transformer models.

Positional Encoding: Adds positional information to the input embeddings.

Strengths and Use Cases:

  • Text Classification: Understanding and categorizing input text.
  • Named Entity Recognition (NER): Identifying and classifying entities in text.
  • Question Answering (QA): Extracting answers from text based on a query.
  • Masked Language Modeling (MLM): Predicting masked tokens to capture bidirectional context.

Decoder-Only Architecture

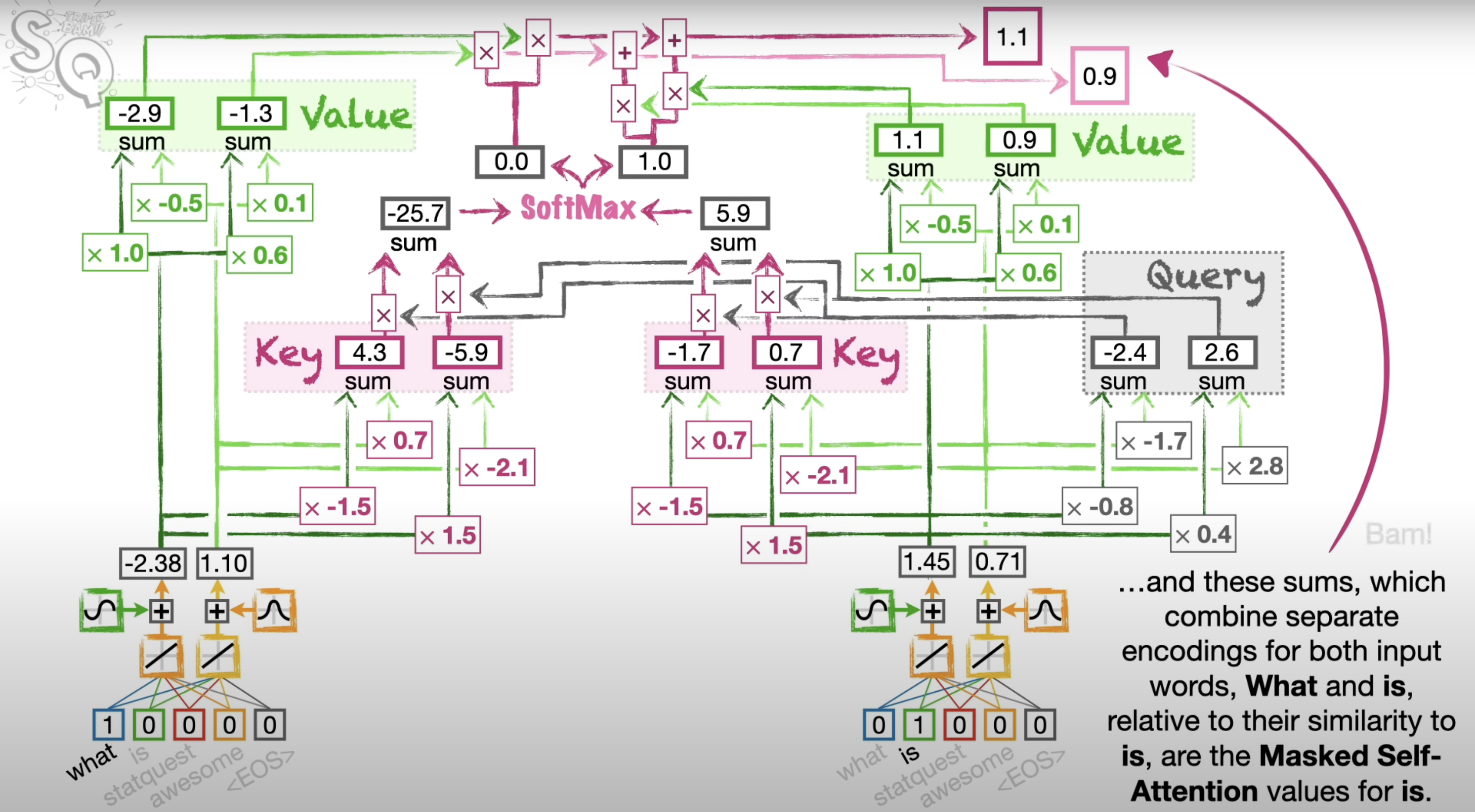

Decoder-Only Transformer Architecture

Examples: GPT, GPT-2, GPT-3

Structure:

  • Consists of multiple layers of the decoder.
  • Each layer includes masked self-attention and feed-forward networks.

Attention Mechanisms:

Masked Self-Attention:

  • Purpose: Prevents the model from accessing future tokens in the sequence during training, ensuring the autoregressive property.
  • How it Works:
    • Similar to self-attention, but the attention score calculation includes a mask that sets the attention weights of future tokens to negative infinity, ensuring they don't contribute to the output.
  • Use Cases: Used in the decoder stack for tasks requiring sequential generation (e.g., text generation).

Strengths and Use Cases:

  • Text Generation: Creating coherent text based on a prompt.
  • Language Modeling: Predicting the next word in a sequence.
  • Autoregressive Tasks: Generating sequences one token at a time.

Encoder-Decoder Architecture

Masked Self-Attention Mechanism

Examples: Original Transformer, T5, BART

Structure:

  • Includes both an encoder and a decoder stack.
  • The encoder processes the input sequence, and the decoder generates the output sequence.

Attention Mechanisms:

Self-Attention (Encoder)

Masked Self-Attention (Decoder)

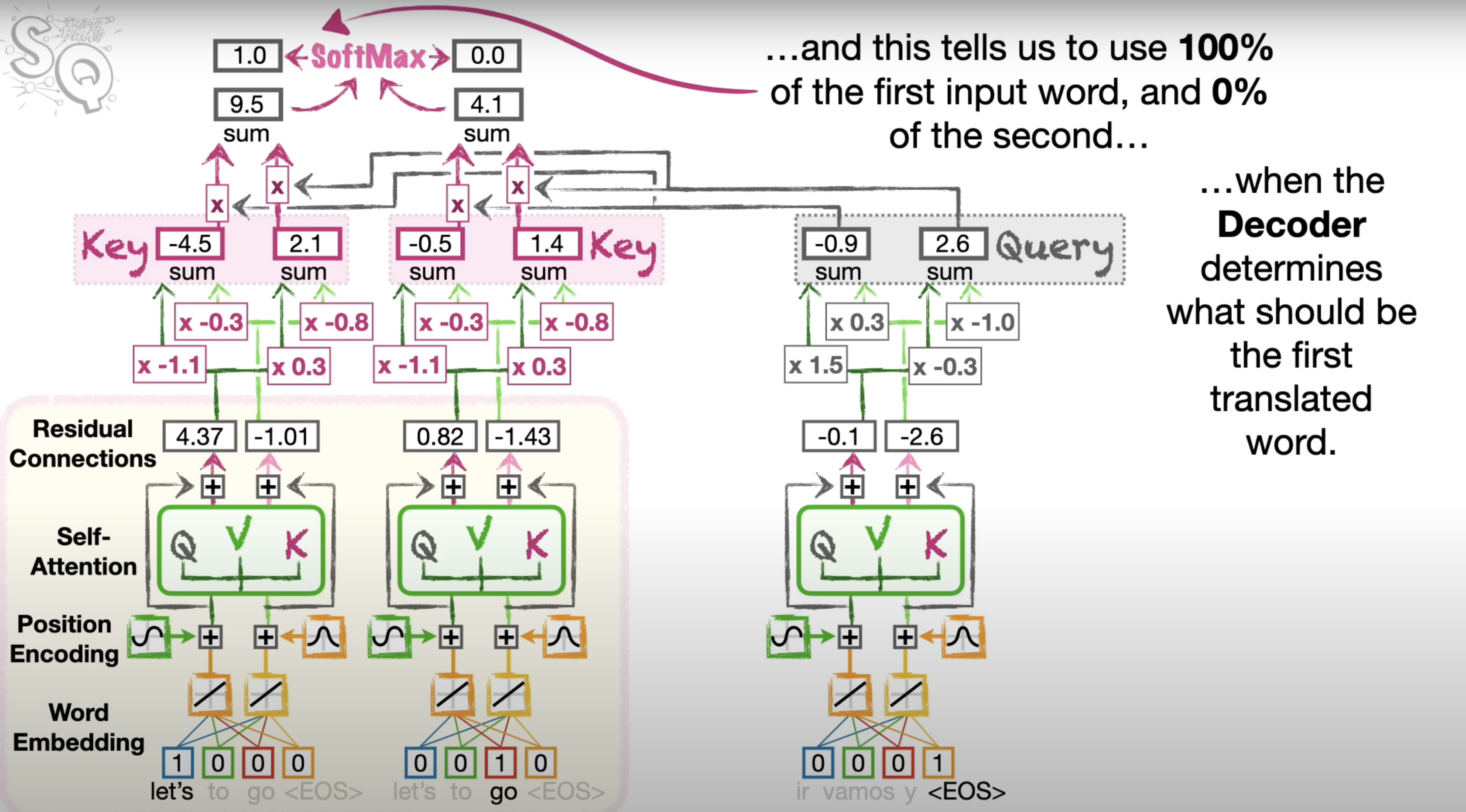

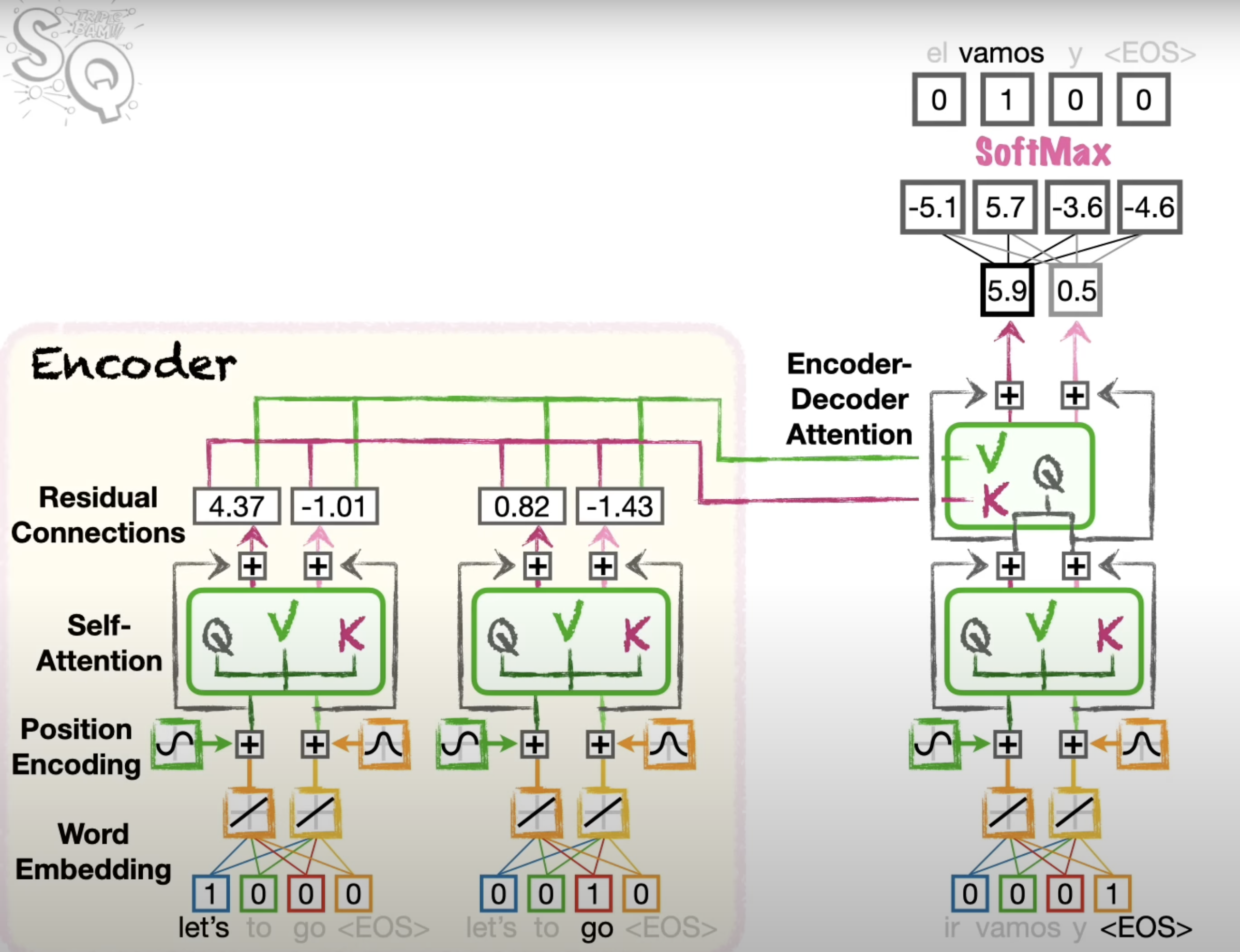

Cross-Attention (Encoder-Decoder Attention):

Masked Self-Attention Mechanism
  • Purpose: Allows the decoder to focus on relevant parts of the encoded input sequence when generating each token of the output.
  • How it Works:
    • The decoder generates Query vectors, and the encoder provides Key and Value vectors.
    • The attention mechanism works similarly to self-attention but between the decoder's queries and the encoder's keys and values.
  • Use Cases: Essential for tasks requiring understanding of the input sequence to generate related output (e.g., translation, summarization).

Strengths and Use Cases:

  • Machine Translation: Translating text from one language to another.
  • Text Summarization: Condensing long texts into summaries.
  • Text Generation with Context: Generating responses or content based on the input context.

Applications of Each Architecture

Encoder-Only:

  • Sentiment Analysis: Determining the sentiment of text.
  • Named Entity Recognition (NER): Identifying entities like names, dates, and locations.
  • Question Answering (QA): Answering questions based on a given text.

Decoder-Only:

  • Story Writing: Generating creative stories.
  • Dialogue Generation: Creating conversational agents.

Encoder-Decoder:

  • Translation: Converting text between languages.
  • Summarization: Summarizing articles or documents.
  • Conversational Agents: Generating context-aware responses in dialogue systems.

Conclusion

Comparison: Decoder-only vs Normal Transformers vs Encoder-Only

Decoder-only Transformers Normal Transformers Encoder-only Transformers
A Decoder-Only Transformer has a single unit for both encoding the input and generating the output. A normal Transformer uses one unit to encode the input, called the Encoder, and a separate unit to generate the output, called the Decoder. An Encoder-Only Transformer has a single unit for processing and encoding the input, without a separate generation component.
A Decoder-Only Transformer uses a single type of attention, Masked Self-Attention A normal Transformer uses two types of Attention during inference: Self-Attention and Encoder-Decoder Attention. An Encoder-Only Transformer uses only Self-Attention, allowing each token to attend to all other tokens in the input.
A Decoder-Only Transformer uses Masked Self-Attention all the time on everything, the input and the output During Training, a normal Transformer uses Masked Self-Attention, but only on the output. An Encoder-Only Transformer uses unmasked Self-Attention throughout, as it doesn't generate sequential outputs.
Unidirectional attention (can only look at previous tokens) Bidirectional attention in encoder (can look at entire input) Bidirectional attention (can look at entire input in all layers)
Suitable for text generation tasks Suitable for various tasks including translation and summarization Suitable for tasks that require understanding of input, such as classification and feature extraction
Generally faster inference due to simpler architecture More versatile but potentially slower due to encoder-decoder structure Efficient for tasks that don't require text generation, as it processes input in parallel

Recap:

  • Encoder-Only: Best for understanding and classifying text.
  • Decoder-Only: Best for generating text.
  • Encoder-Decoder: Best for tasks requiring both understanding and generating text.

Future Directions:

  • Efficiency Improvements: Research on making transformer models more efficient.
  • Interpretability: Efforts to make model decisions more interpretable.
  • Domain Adaptation: Enhancing models for specific domains or tasks.

Thank You

Thank you for your attention!

For further questions or discussions: swadeshswain226@gmail.com
